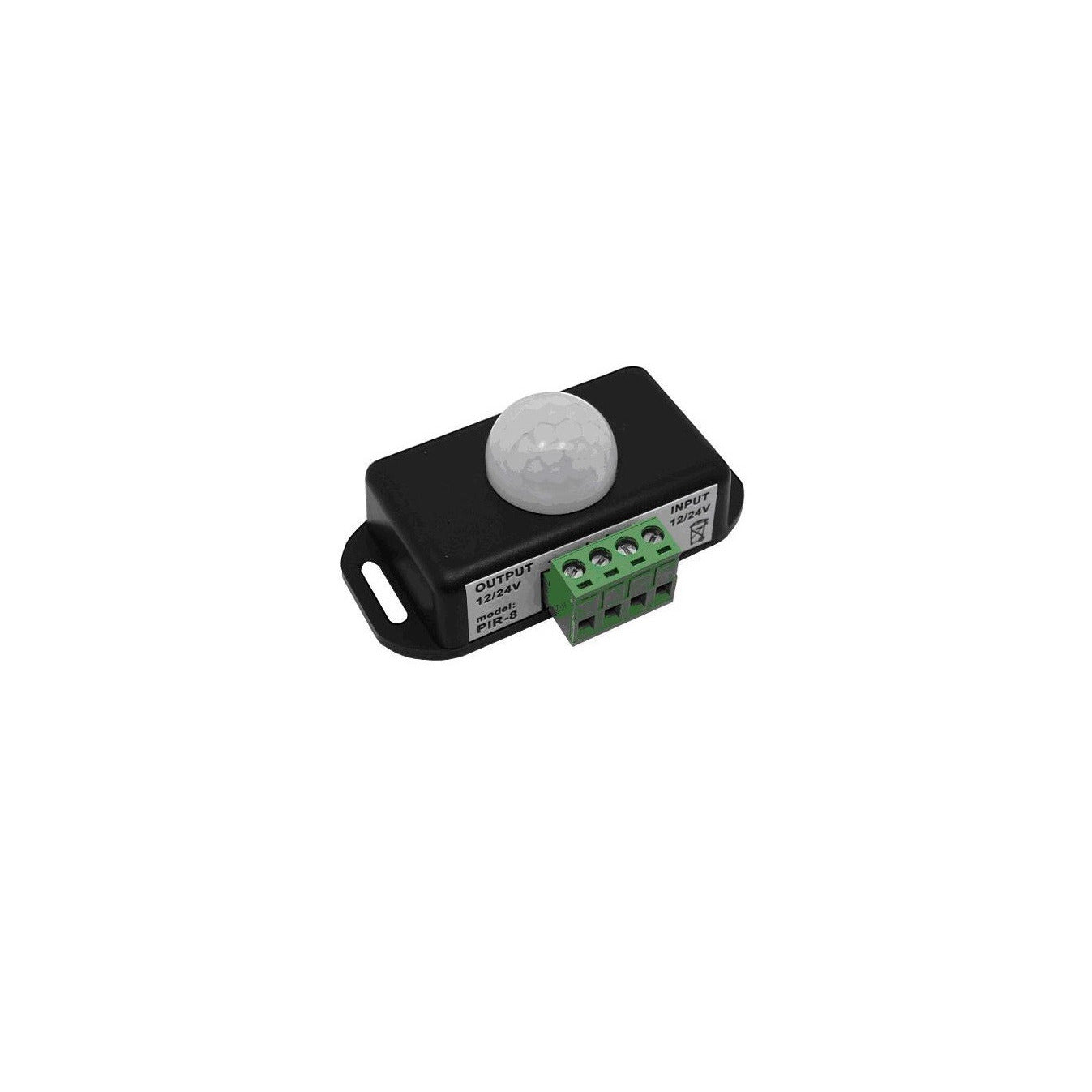

DC 12 Volt - 24 Volt 6A IR Motion Sensor ON OFF Movement Detector Latching Switch

12V - 24V

2 minutes to install perfect for hunting traps automatic lighting and other energy conserving devices. Working voltage 10.5V - 16V -or- 21V - 32V

Rated at <6A and designed for 12V and 24V batterys , marine battery systems , power switch for low voltage DC power sources and solar panel lighting systems. IR sensor detects any body movement and extremely neat when used in the right setting and equipment

  • Operating temperature -20º to 60º
  • 8M IR sensor range
  • 60º angle sensor range
  • 1-10 adjustable load on duration
  • Rated for up to 6A
  • Standy-by drain = 0.3W
  • Animal traps , science projects and other off grid applications
  • Eliminate need for messy wiring and switches
  • Optimal use with LED lighting and lamps
  • 433 MHz

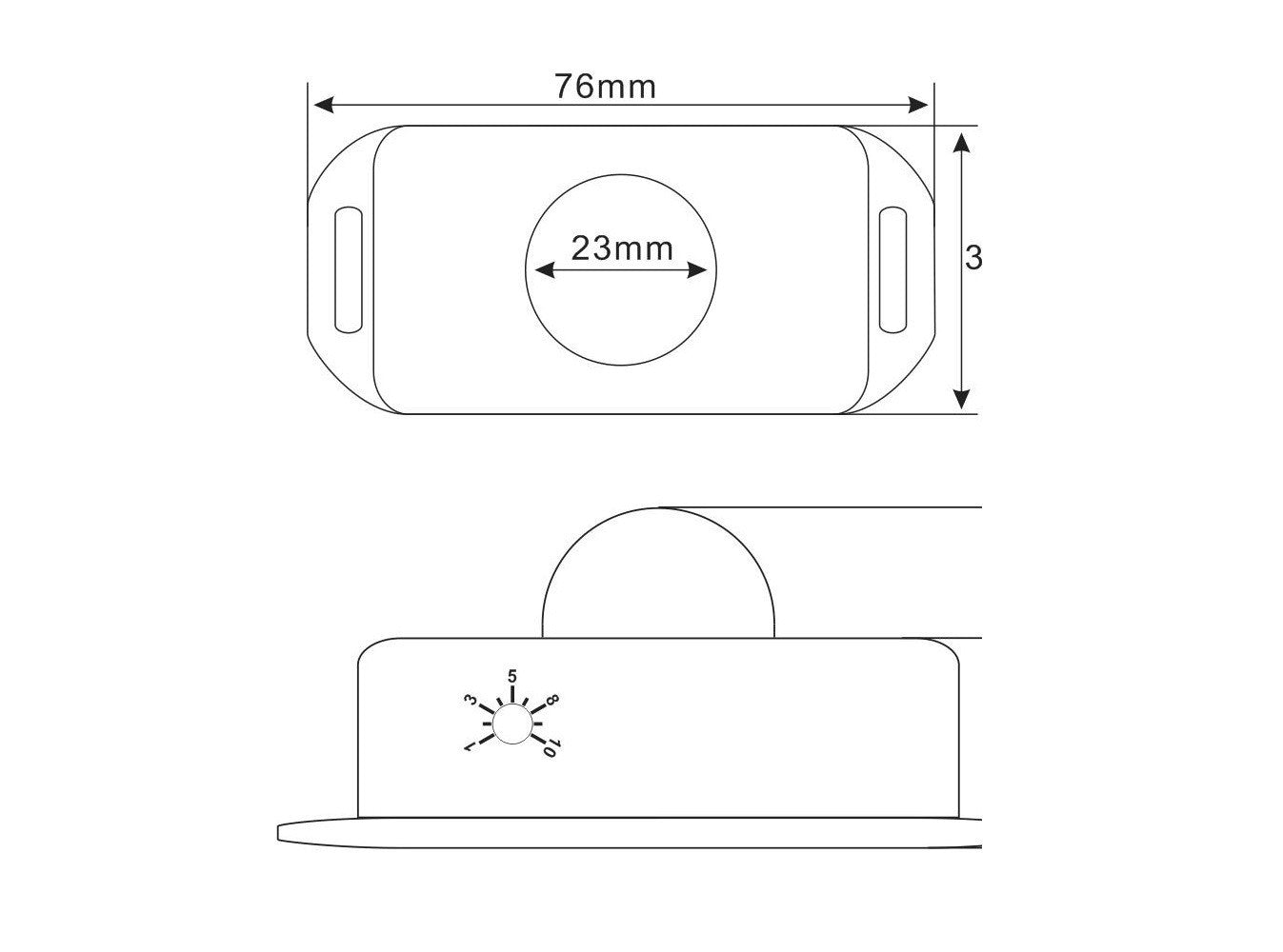

  • Dimensions - 76mm x 45mm x 34mm
  • Sensor dimensions - 23mm Diameter
