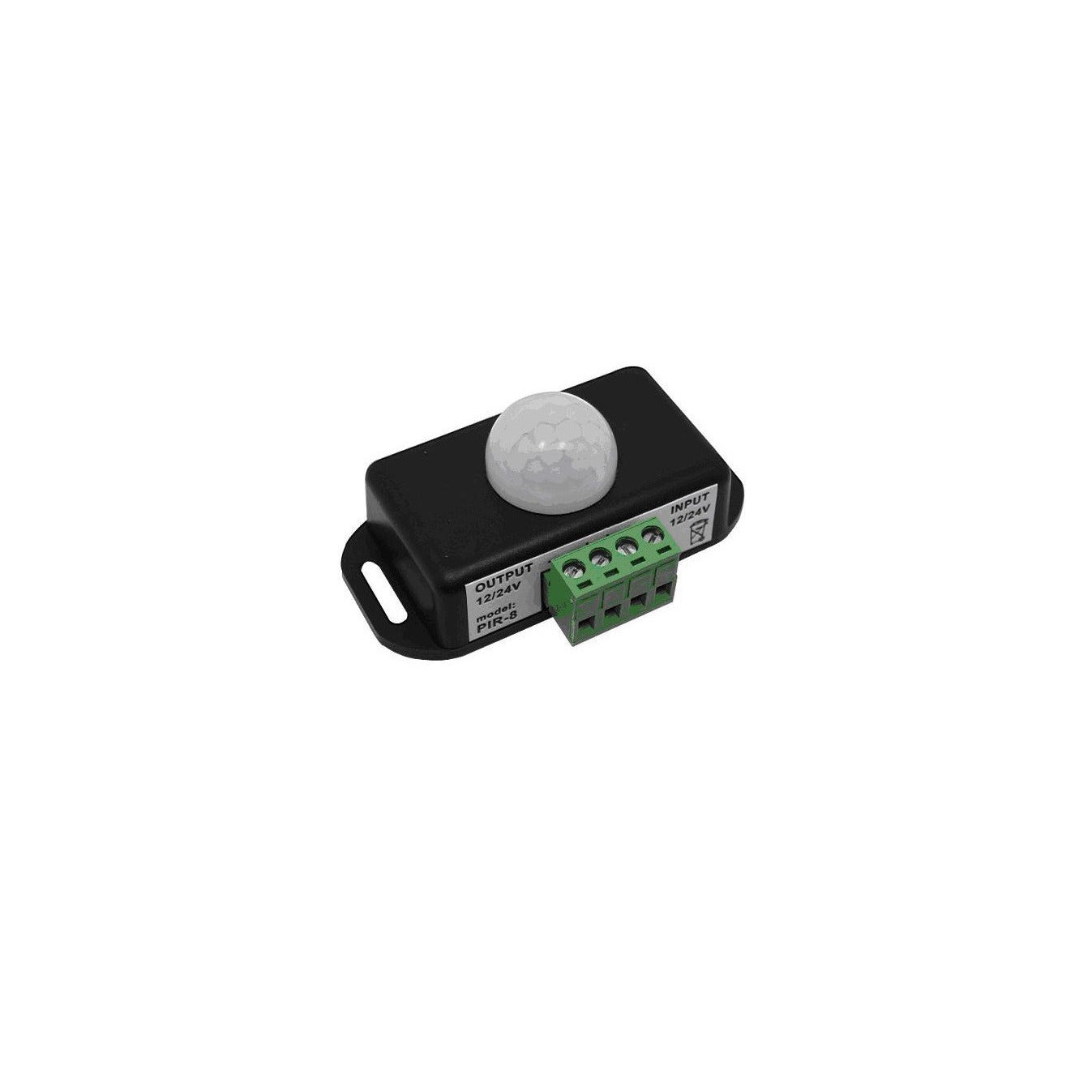

DC 12 Volt - 24 Volt 6A IR Motion Sensor ON OFF Movement Detector Latching Switch

12V - 24V

2 minutes to install perfect for hunting traps automatic lighting and other energy conserving devices. Working voltage 10.5V - 16V -or- 21V - 32V

Rated at <6A and designed for 12V and 24V batteries, marine battery systems, power switch for low voltage DC power sources, and solar panel lighting systems. IR sensor detects any body movement and extremely neat when used in the right setting and equipment

Product Dimensions
Length 3.00"
Width 1.77"
Height 1.33''
  • Operating temperature -20º to 60º
  • 8M IR sensor range
  • 60º angle sensor range
  • 1-10 adjustable load on duration
  • Rated for up to 6A
  • Standy-by drain = 0.3W
  • Animal traps , science projects and other off grid applications
  • Eliminate need for messy wiring and switches
  • Optimal use with LED lighting and lamps
  • 433 MHz

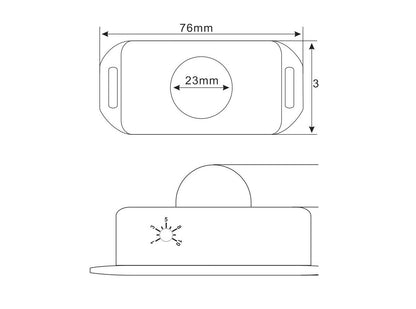

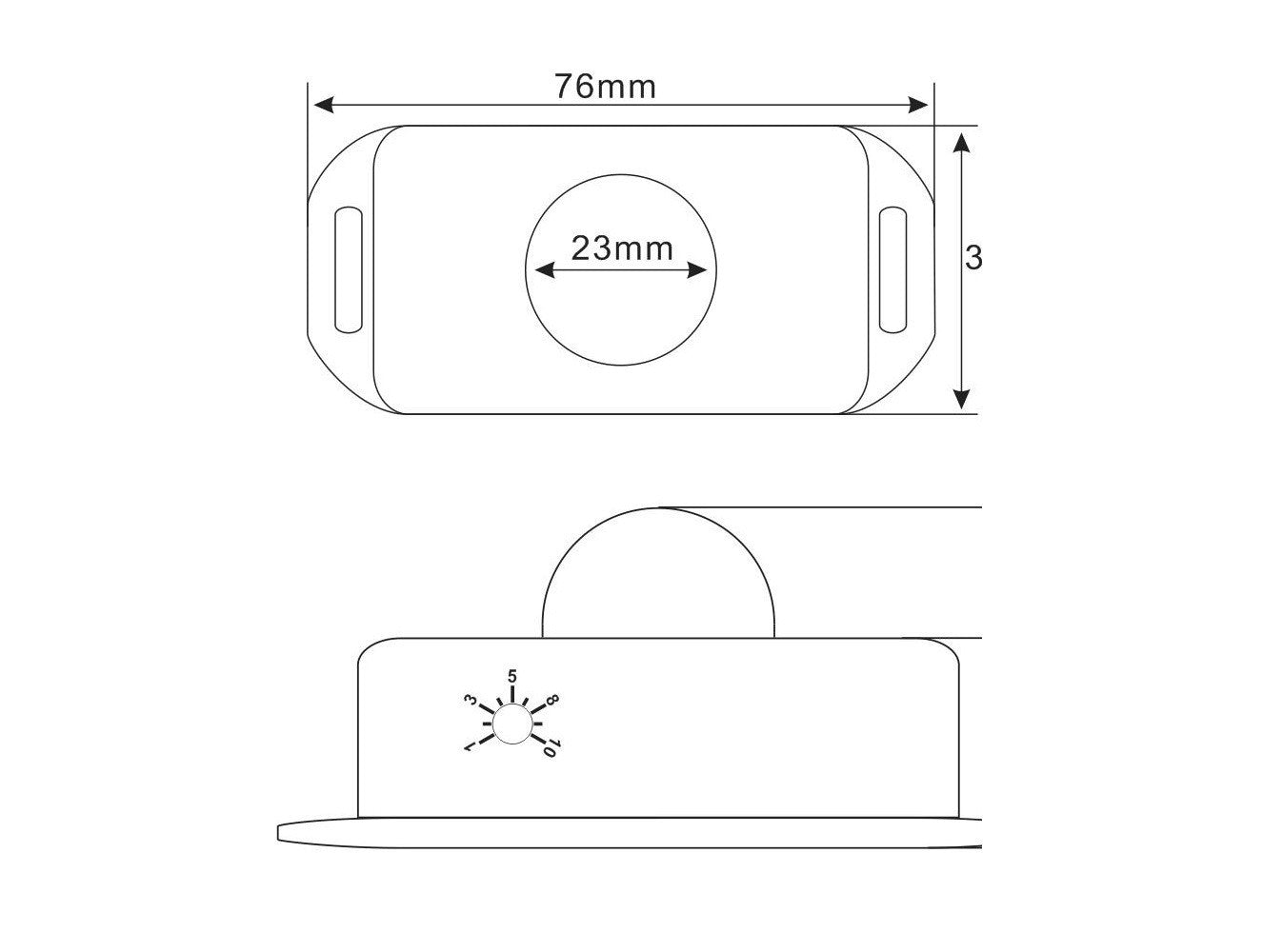

  • Dimensions - 76mm x 45mm x 34mm
  • Sensor dimensions - 23mm Diameter
