Lighting design is a vital aspect of any space, affecting not just the ambiance but also the functionality of the area. One critical aspect of lighting design is the beam angle, which determines how light is distributed across a room. Understanding beam angles and how they influence illumination can help in creating the desired lighting effect for various applications. This educational guide will delve into what beam angles are, how they impact lighting design, and offer tips on choosing the right beam angle for different settings.

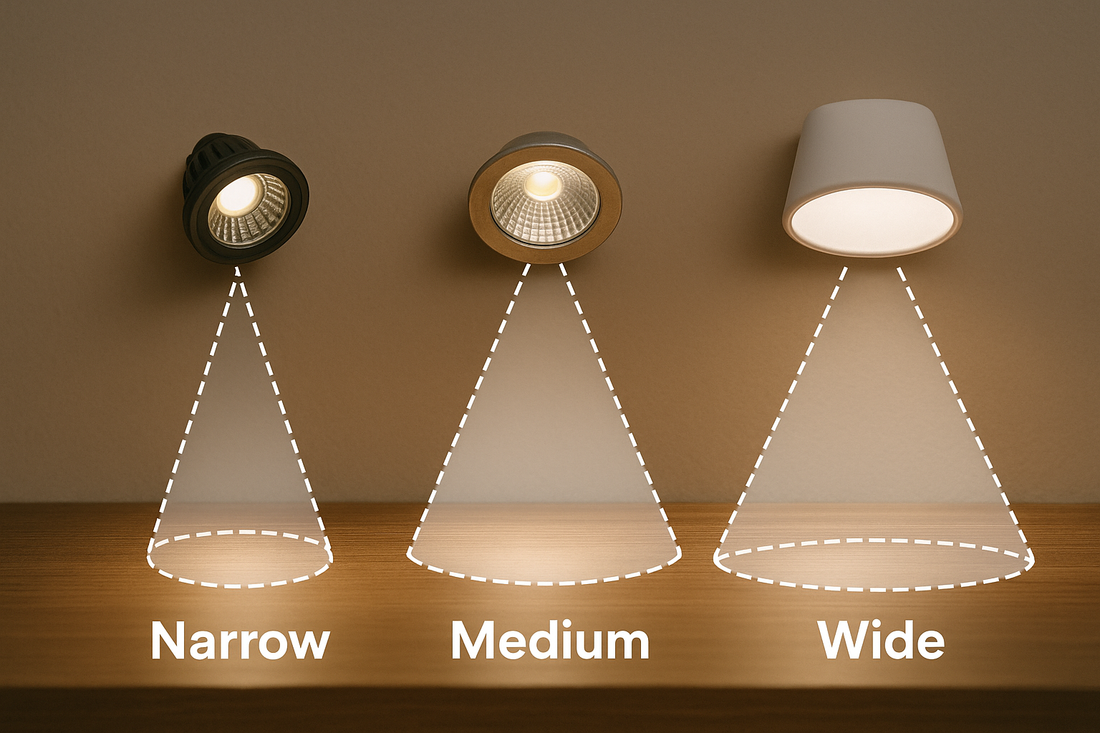

What is a Beam Angle?
In simple terms, a beam angle is the angle at which light is emitted from a light source. It defines the spread of light and directly impacts how light covers a particular area. Beam angles are measured in degrees and influence the intensity and spread of light. Smaller beam angles produce focused, intense light suitable for accent lighting, while larger beam angles offer a broader light distribution suitable for general lighting purposes.
Understanding Beam Spread
Beam spread refers to how wide the light will extend from a particular lighting fixture. For instance, if you choose a light with a 25-degree beam angle, it will create a narrow beam suitable for highlighting objects or features such as artwork or architectural details. Alternatively, a 120-degree beam angle covers a larger area with soft, diffuse light, ideal for ambient or general lighting.
Factors to Consider When Choosing a Beam Angle
- Purpose of Lighting: Identify what you wish to achieve with your lighting. Do you want to highlight specific areas or objects, or do you need to illuminate a large area?
- Fixture Location: Consider the height and location of the fixture. Higher placements might require narrower beam angles to maintain light intensity at ground level.
- Room Size and Layout: For larger rooms, broader beam angles can ensure the entire space is well lit.
- Type of Space: Different spaces like offices, showrooms, or homes may have different lighting requirements that dictate the choice of beam angle.
For thorough insights, you may refer to resources like the Illuminating Engineering Society (IES) or the Chartered Institution of Building Services Engineers (CIBSE).
Beam Angles and Their Applications
10-25 Degree Beam Angles
These are narrow angles that produce focused beams. They are excellent for accent lighting and highlighting specific objects such as artwork, sculptures, or architectural features. In retail environments, they can be used to draw attention to specific products and enhance visual merchandising.
25-40 Degree Beam Angles
Moderate beam angles that offer a balance between focused and general lighting. They can be used in task lighting for reading areas, study spaces, or in kitchen countertops where both focus and broader coverage are required. This angle ensures clarity and focus but with increased coverage.
40-60 Degree Beam Angles
These angles produce a softer light ideal for general illumination. They are suitable in living rooms or lobbies where an even distribution of light creates a cozy and welcoming atmosphere. This range is effective for providing ambient lighting that is both functional and pleasant.
60-120 Degree Beam Angles
Wide beam angles provide diffuse light spread over large areas. They are perfect for spaces requiring uniform brightness, such as classrooms, conference rooms, or large retail spaces. This angle minimizes shadows and ensures that the entire area is consistently illuminated.
There are also angle adjustable bulbs that have beam angles that can be manually adjusted according to your needs. These are handy for commercial or artistic use cases.
Maintenance Tips for Optimal Lighting
Regular maintenance of lighting fixtures ensures they operate efficiently and provide the desired lighting effect. Here are some tips:
- Regular Cleaning: Dust and dirt accumulation can reduce light output. Clean fixtures regularly with a soft, dry cloth.
- Check for Wear and Tear: Periodically inspect for any wear in the wiring or damage to the fixture, especially in high-traffic environments.
- Replace Bulbs Promptly: Replace any flickering or burned-out bulbs promptly to maintain consistent lighting levels.
- Adjust and Re-aim: For adjustable fixtures, re-aim them as necessary to accommodate layout changes or redesigns in a space.
By understanding beam angles and their impacts on lighting design, you can make well-informed decisions when selecting lighting for any space. This knowledge helps in achieving your design goals, whether it's creating ambient atmospheres or accentuating specific features. Remember, the right beam angle not only enhances the aesthetic appeal of a room but also improves its functionality.
For further technical specifications and design considerations, consider reaching out to professional lighting designers or consulting detailed guides available from credible industry sources.
